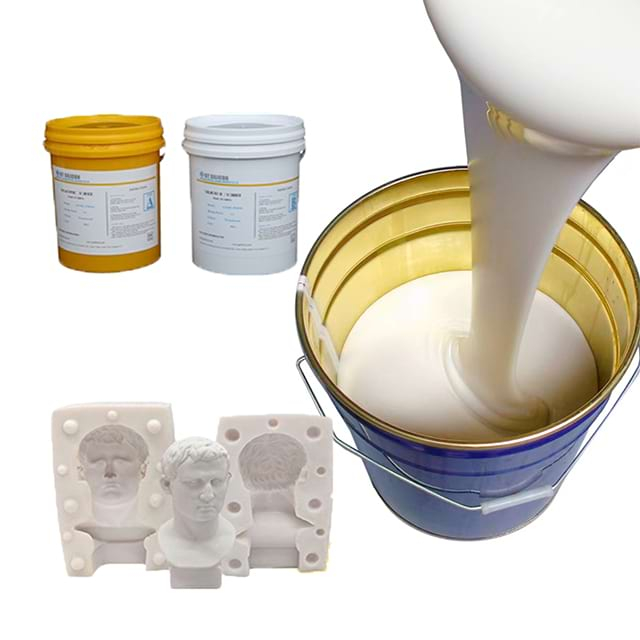

RTV-2 Moldmaking Platinum Cured Liquid Silicone Rubber: Uncompromising Purity for Superior Mold Making
Elevate your casting projects to a new level of clarity, durability, and precision with our RTV-2 Moldmaking Platinum Cured Liquid Silicone Rubber. This advanced two-part, Room-Temperature-Vulcanizing (RTV) system utilizes a premium platinum catalyst, setting a superior benchmark for applications demanding absolute material purity, exceptional optical clarity, and zero inhibition when casting polyurethane resins. Designed for the discerning professional, it delivers flawless performance in creating production-grade molds for resin art, specialty food applications, and high-value prototypes.
The choice of a platinum catalyst over conventional tin systems is a decisive factor for quality. This sophisticated chemistry eliminates concerns about odor, by-product migration, and mold degradation, ensuring your castings remain pristine and your molds last longer. This results in a cured rubber that is inherently more stable, exhibiting superior resistance to yellowing and thermal aging compared to condensation-cure systems. The exceptional transparency of the cured rubber facilitates easy bubble detection and provides a brilliant, optically clear view of your master model, streamlining the de-molding process for the most intricate pieces.
This formulation is meticulously engineered to balance exceptional physical properties with user-friendly application. Its low initial viscosity ensures it effortlessly penetrates the most minute details of a model, from subtle textures to deep undercuts, capturing every nuance with breathtaking accuracy. Once cured, it develops an optimal combination of a soft Shore A hardness for easy de-molding and a remarkably high tear strength. This crucial property allows you to produce dozens, even hundreds, of castings from a single mold without signs of wear or failure, making it an exceptionally cost-effective solution for series production.
Zero Inhibition with PU Resins: A primary advantage of this platinum silicone is its excellent compatibility with a wide range of polyurethane resins, minimizing the risk of cure inhibition that can plague other silicone types, especially with fast-setting resins.
Exceptional Recovery and Memory: The elastomer boasts outstanding elastic recovery, allowing it to be stretched and flexed significantly during de-molding and then return perfectly to its original shape, ensuring consistent casting dimensions over the entire mold lifecycle.
Ideal for Direct Food Contact Applications: With its pure, non-toxic formulation, this silicone is an excellent candidate for creating molds used in chocolate, candy, and ice cube production, complying with key food safety standards.
| Property | Specification |
|---|---|
| Curing System | Platinum-Catalyzed Addition Cure |
| Mixed Viscosity | 4,000 mPa·s (Low) |
| Pot Life (@23°C) | 45 minutes |
| Tack-Free Time | 4 hours |
| Full Cure Time | 24 hours |
| Shore Hardness (Cured) | A 25 |
| Tear Strength | 38 kN/m |
| Linear Shrinkage | < 0.1% |
| Color (Cured) | Crystal Clear |
This premium silicone rubber is the definitive choice for:
Creating production molds for clear epoxy and polyurethane resin castings.
Special effects and prop fabrication requiring high-detail capture.
Manufacturing custom molds for food-grade applications (chocolate, ice, confectionery).
Jewelry making and artistic lifecasting where bubble-free, high-gloss finishes are critical.
Commitment to Quality and Support
This product is produced under a strict quality management system. We provide comprehensive technical support, including a Material Safety Data Sheet (MSDS) and a detailed Technical Data Sheet (TDS) to ensure you achieve the best possible results.
Invest in Precision and Purity.
Choose a molding rubber that protects your master models, enhances your workflow, and delivers consistent, museum-quality reproductions.
Contact us today to request a sample or consult with our technical experts on your specific project requirements. Discover why platinum-cured silicone is the professional's choice for unparalleled results.
| Model Code | Hardness (Shore A) | Viscosity (Cps) | Mixing Ratio | Tear Strength (kN/m²) | Tensile Strength (MPa) | Shrinkage | Elongation at Break |
|---|---|---|---|---|---|---|---|
| GTSIL-P0 | 0 | 1500-3000 | 1:1 | 10-15 | 3-5 | ≤0.1% | 400-500% |
| GTSIL-P5 | 4-6 | 2000-4000 | 1:1 | 12-16 | 3-5 | ≤0.1% | 500-600% |
| GTSIL-P10 | 8-10 | 3000-5000 | 1:1 | 14-17 | 3.5-5.5 | ≤0.1% | 500-600% |
| GTSIL-P15 | 14-16 | 4000-6000 | 1:1 | 16-18 | 4-6 | ≤0.1% | 500-600% |
| GTSIL-P20 | 19-21 | 4000-7000 | 1:1 | 18-22 | 4-6 | ≤0.1% | 500-600% |
| GTSIL-P25 | 24-26 | 5000-8000 | 1:1 | 22-26 | 4-6 | ≤0.1% | 400-500% |
| GTSIL-P30 | 28-30 | 6000-9000 | 1:1 | 20-23 | 4-6 | ≤0.1% | 400-500% |
| GTSIL-P35 | 34-36 | 6000-9000 | 1:1 | 16-19 | 4-6 | ≤0.1% | 350-500% |
| GTSIL-P40 | 38-42 | 4000-6000 | 1:1 | 12-16 | 3.5-5.5 | ≤0.1% | 300-450% |
| GTSIL-P45 | 43-46 | 3000-5000 | 1:1 | 10-15 | 3-5 | ≤0.1% | 300-450% |
