Choosing between platinum-based and tin-based silicones is not just a simple material preference. It directly dictates project viability, mold library longevity, and safety compliance. Using the wrong system often results in catastrophic cure inhibition, degraded molds, or strict regulatory failures. Many engineers underestimate how chemical incompatibilities ruin expensive production runs. Shrinking molds can destroy tight manufacturing tolerances overnight. A ruined master model forces you to restart the entire design process from scratch.
This guide provides a practical, evidence-based evaluation framework. We aim to help manufacturers, mold-makers, and prototyping engineers select the correct RTV (Room Temperature Vulcanization) silicone. You will learn how to match performance metrics and implementation realities to your specific production workflow. We will explore curing mechanics, compliance standards, and industry-specific use cases to ensure your next casting project succeeds flawlessly.
Platinum silicone (addition-cure) offers negligible shrinkage, long-term library life, and food/medical compliance, but requires strict contamination control to prevent cure inhibition.
Tin silicone (condensation-cure) provides high resistance to inhibition and lower upfront costs, but suffers from higher shrinkage and shorter tear-strength lifespans.
Cross-contamination is a primary implementation risk; facilities using both materials must maintain strict isolation protocols.
Platinum Silicone cures via a highly stable, heat-accelerated catalytic reaction. We classify this as an addition-cure system. The polymer chains cross-link directly and seamlessly. They produce no byproducts during this chemical bonding phase. You will observe zero off-gassing. The cured mass remains exactly the same volume as the liquid mixture. You typically mix these systems in straightforward 1:1 or 10:1 ratios by volume or weight. This user-friendly ratio reduces mixing errors on the shop floor. This chemical stability ensures precise dimensional accuracy. It also allows you to cure the material inside completely sealed environments. You do not need air exposure for the reaction to complete.
Tin silicone operates on a fundamentally different chemical pathway. It utilizes a condensation-cure mechanism. The mixed material must absorb ambient moisture from the air to activate. This moisture triggers the organotin catalyst. Tin silicone usually requires a more precise 100:3 or 100:5 mixing ratio by weight. You must use an accurate gram scale. During the cross-linking phase, the chemical reaction generates alcohol byproducts. These byproducts must evaporate out of the silicone mass. This evaporation serves as the mechanical root cause of its dimensional shrinkage. As the alcohol leaves the rubber matrix, the overall volume decreases slightly over time.
These chemical differences carry heavy operational impacts. Platinum Silicone allows for precise dimensional tolerances. You can successfully execute closed-mold curing techniques. Manufacturers often utilize injection molding techniques here. Tin strictly requires atmospheric exposure. You cannot cure it inside a sealed vacuum chamber or a locked injection mold. It will inherently shrink. This unavoidable shrinkage permanently alters the final cast's physical dimensions.
Mold library life defines how many years a cured mold remains viable in storage. For addition-cure materials, this library life spans decades. You can expect shrinkage rates ranging from zero to less than 0.1%. They maintain their tear strength and elasticity indefinitely under proper storage conditions. We highly recommend them for archival molds. They also excel at casting precision engineering parts. Mechanical assemblies require exact tolerances. Even a millimeter of deviation ruins the part fitment.
Tin molds suffer from a strictly limited library life. The rubber continues to slowly cross-link and lose essential oils over time. They often become brittle and tear easily within one to three years. Their physical shrinkage ranges from 1% to 3%. This shrinkage is often uneven. We call this anisotropic shrinkage. This uneven distortion ruins complex geometries. We recommend tin purely for short-run projects or immediate-use applications. Once you cast your limited run, you generally discard the mold.
Cure inhibition is the most frustrating failure mode in mold making. Platinum Silicone is highly sensitive to chemical contamination. It will fail to cure completely if exposed to specific elements. The material will remain a tacky, viscous mess. You will spend hours cleaning ruined material off your master model using harsh solvents. Sulfur is a primary culprit. You will find sulfur in many popular modeling clays. Latex gloves, aloe vera, and certain adhesives also poison the catalyst. UV-curing resins from 3D printers cause notorious inhibition issues. You must thoroughly clean and seal printed parts before pouring.
Tin silicone proves highly robust against these contaminants. It ignores sulfur entirely. It cures reliably over almost any substrate imaginable. This chemical resilience makes it the ultimate fail-safe choice. We frequently use it over unknown or chemically volatile master models. If you scavenge an organic object or an antique and do not know its chemical makeup, pour tin. It guarantees a successful cure without destroying the original item.

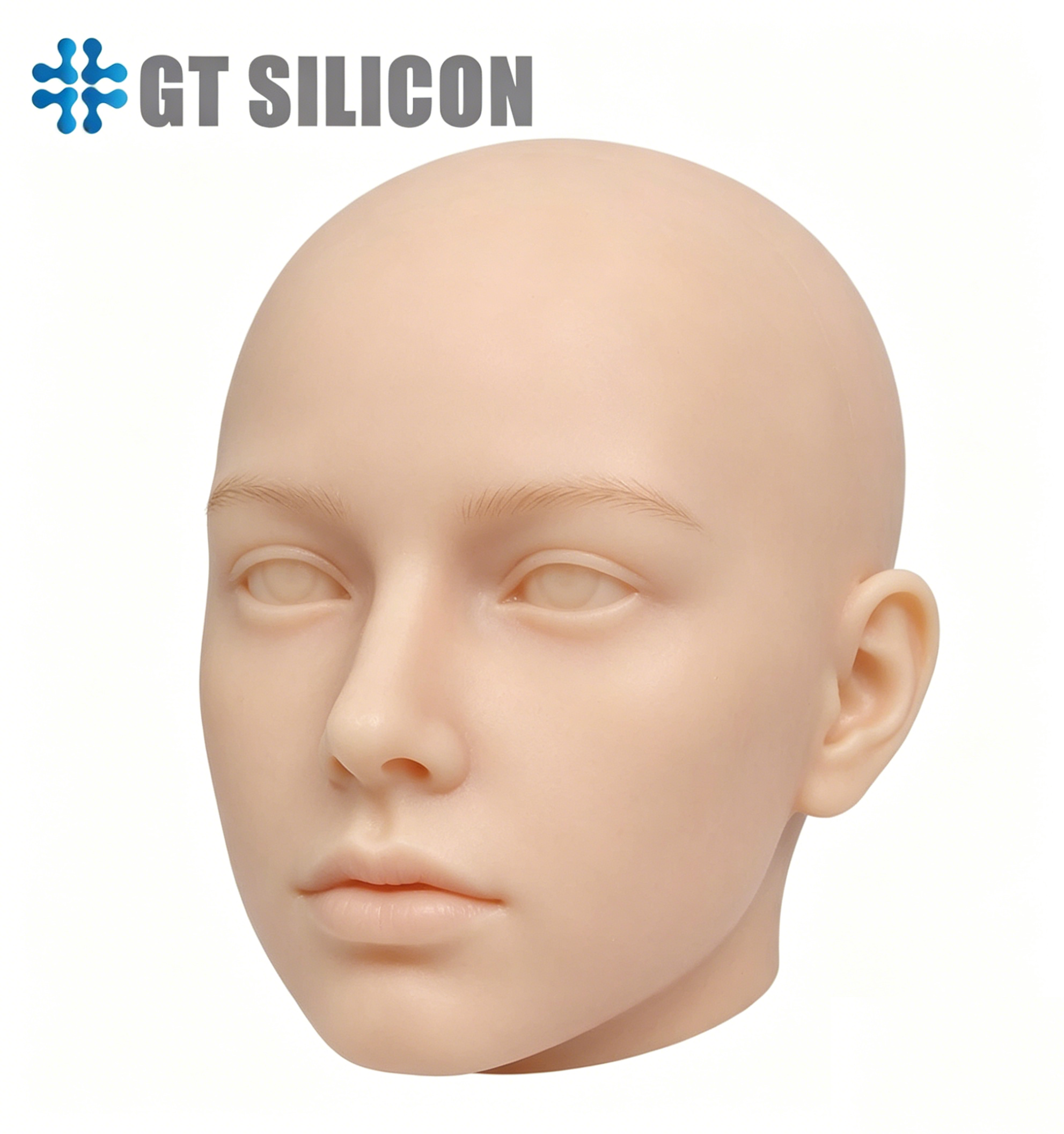

Safety regulations dictate your material selection for consumer goods. Platinum Silicone stands as the only acceptable choice for FDA food-grade applications. It easily passes ISO 10993 cytotoxicity testing. This makes it mandatory for medical-grade skin contact products. High-end special effects artists use it exclusively for facial prosthetics. It causes no allergic reactions or skin sensitization. You can safely cast items meant for human consumption or prolonged dermal exposure.
Tin systems are never food-safe. They are never skin-safe. The organotin catalysts and evaporating alcohols pose toxicological risks. You must restrict their application to industrial uses. They remain excellent for artistic sculptures and mechanical prototyping. Never use them for baking molds, chocolate molds, or wearable medical devices under any circumstances.
Evaluating material costs requires looking beyond the initial purchase price. Upfront, tin-based silicone is significantly cheaper per pound. This lower entry price attracts hobbyists and budget-conscious studios. If you only need five resin copies, tin makes perfect financial sense. You minimize your immediate material expenditure.
Long-term ROI heavily favors addition-cure systems. Platinum Silicone provides extended tear strength retention. Its dimensional stability remains pristine over thousands of casting cycles. You will manufacture fewer replacement molds. Building a new mold requires expensive labor, master model preparation, and fresh silicone. Eliminating these mold remakes reduces your overall labor burden significantly. High-yield production runs become vastly more profitable. You spend less time making tools and more time casting sellable parts.
Recommendation: Platinum Silicone.
Reasoning: Epoxy and polyurethane resins degrade rubber molds quickly. The exothermic heat generated during resin curing breaks down the mold surface. Harsh chemicals within the resin pull plasticizers out of the rubber matrix. This causes rapid embrittlement. Platinum withstands this intense chemical and thermal stress significantly better. Artisans casting custom tabletop dice rely on its durability. It guarantees mirror-like finishes over dozens of resin pulls. Prototyping engineers need these robust molds to survive aggressive polyurethane casting compounds during rapid product development.
Recommendation: Platinum Silicone strictly.
Reasoning: The complete absence of off-gassing ensures absolute material purity. The non-toxic catalytic process meets strict FDA guidelines. It complies with international ISO standards for bodily contact. Chefs pour hot isomalt, fondant, and chocolate into these molds safely. Medical device manufacturers cast wearable monitors and orthopedic supports. There is zero risk of chemical leaching into the human body. Safety and compliance remain non-negotiable in these critical sectors.
Recommendation: Tin silicone.
Reasoning: Cost-efficiency becomes paramount when building massive brush-on molds. A life-sized bronze sculpture requires hundreds of pounds of rubber. Pouring such high volumes demands lower upfront prices. Dimensional perfection over a ten-year span is less critical here. You usually perform a one-off wax pour for investment casting. Concrete planters do not require micrometer precision. Furthermore, sculptors heavily utilize sulfur-based modeling clays for large statues. Tin's robustness against these sulfur-based clays is highly beneficial. It cures flawlessly over the sculptor's original artwork without requiring excessive sealing coats.
Transitioning between these two systems demands rigorous laboratory hygiene. You cannot pour Platinum Silicone into a mold box previously used for tin silicone. You cannot use the same workbench without heavy cleaning. Doing so risks complete cure inhibition. Even microscopic amounts of tin catalyst will permanently deactivate the platinum reaction. The resulting mess requires toxic solvents to clean and often ruins the master model entirely.
We recommend color-coding your workshop tools to prevent disaster. Dedicated equipment ensures safe production cycles.
Purchase specific mixing buckets exclusively for addition-cure materials.
Label reusable plastic stir sticks clearly to avoid accidental swaps.
Wipe down vacuum degassing chambers thoroughly with isopropyl alcohol between uses.
Separate your curing racks to avoid cross-contamination from off-gassing tin molds.
You must ensure tin byproducts never contaminate the addition-cure process. Treat the two materials as if they are allergic to one another.
Never commit a massive batch of expensive material to an untested surface. Always conduct a small-batch patch test on your master model. Mix a tiny amount of rubber. Apply it to an inconspicuous area of the model. Wait for the recommended demold time. Press your fingernail into the patch to verify a clean, tack-free rebound. Confirm full compatibility before pouring a five-gallon bucket. This simple, ten-minute step prevents thousands of dollars in wasted material and lost labor.
RTV Silicone Selection Matrix
Evaluation Criteria | Platinum-Based Systems | Tin-Based Systems |
|---|---|---|
Cure Mechanism | Addition-cure (No byproducts) | Condensation-cure (Alcohol off-gassing) |
Shrinkage Rate | Nearly zero (<0.1%) | Moderate (1% - 3%) |
Inhibition Risk | High (Sensitive to sulfur, latex, UV resin) | Low (Cures over almost anything) |
Safety Compliance | FDA Food-safe, ISO Medical-safe | Not safe for food or skin contact |
Mold Longevity | Decades (Excellent tear strength retention) | 1-3 Years (Becomes brittle over time) |
Choose Platinum Silicone If:
The mold must last for years without shrinking or deforming.
The application requires food, medical, or skin-safe certification.
You cast aggressive materials like polyurethane or epoxy resins frequently.
You maintain complete control over the chemical makeup of your master model.
Choose Tin Silicone If:
Budget serves as the primary constraint and the mold is for short-term use.
The master model contains sulfur, UV resin, or unknown elements.
Dimensional shrinkage of 1-3% will not negatively impact the final product.
You are creating massive architectural elements where tight tolerances are unnecessary.
The choice between platinum and tin silicone fundamentally dictates your production workflow. Platinum Silicone serves as a strategic investment in longevity, precise replication, and stringent safety compliance. Tin functions as a highly tactical tool for cost-control, massive pours, and chemically difficult substrates. Understanding these chemical differences empowers better manufacturing outcomes and prevents expensive workshop disasters.
Evaluate your master model's exact chemical makeup immediately. Define your required dimensional tolerances. Determine your desired mold library lifespan before ordering any supplies. Map out your workshop space to ensure proper tooling isolation.
Request a customized material consultation today. Download our technical data sheet (TDS) comparison matrix for detailed specifications. Order a sample trial kit to conduct a localized inhibition patch test inside your facility.
A: No. Tin silicone off-gasses chemical compounds continuously over its lifespan. These airborne and surface-level alcohols will permanently inhibit platinum systems from curing. The reaction destroys the platinum catalyst instantly. You will be left with a sticky, ruined mess that requires harsh chemical solvents to remove.
A: Platinum Silicone generally boasts superior temperature resistance. It maintains its structural integrity at much higher heat levels. This makes it highly suitable for low-melt metal casting applications like pewter. It also excels in high-heat baking environments commonly found in commercial culinary applications.
A: This symptom indicates classic cure inhibition. It occurs when the liquid silicone reacts unfavorably with specific contaminants on the master model. Common culprits include sulfur-based clays, latex gloves, aloe vera, and certain cyanoacrylate adhesives. The catalyst is permanently poisoned, and the sticky material must be scraped off.
A: A tin mold typically loses its internal tear strength rapidly. It shrinks significantly and becomes brittle within 12 to 36 months of curing. Conversely, a platinum mold can remain dimensionally stable and highly flexible for decades. You simply need to store it properly in a climate-controlled environment.
